CCS-30 / 紧凑型现金循环系统
CCS-30-B紧凑型纸币循环系统是一款能实现整叠纸币识别、存款、循环找零等功能的核心模块，具备高度的可靠性、易用性及易维护性，通过对纸币的找零实现自我循环，减少花在补钞、清点、更换钱箱等方面的时间，减少自动设备内的沉睡现金、现金暴露风险、统计成本损失及停机结账、现金运送等时间，提高整体运营效率。

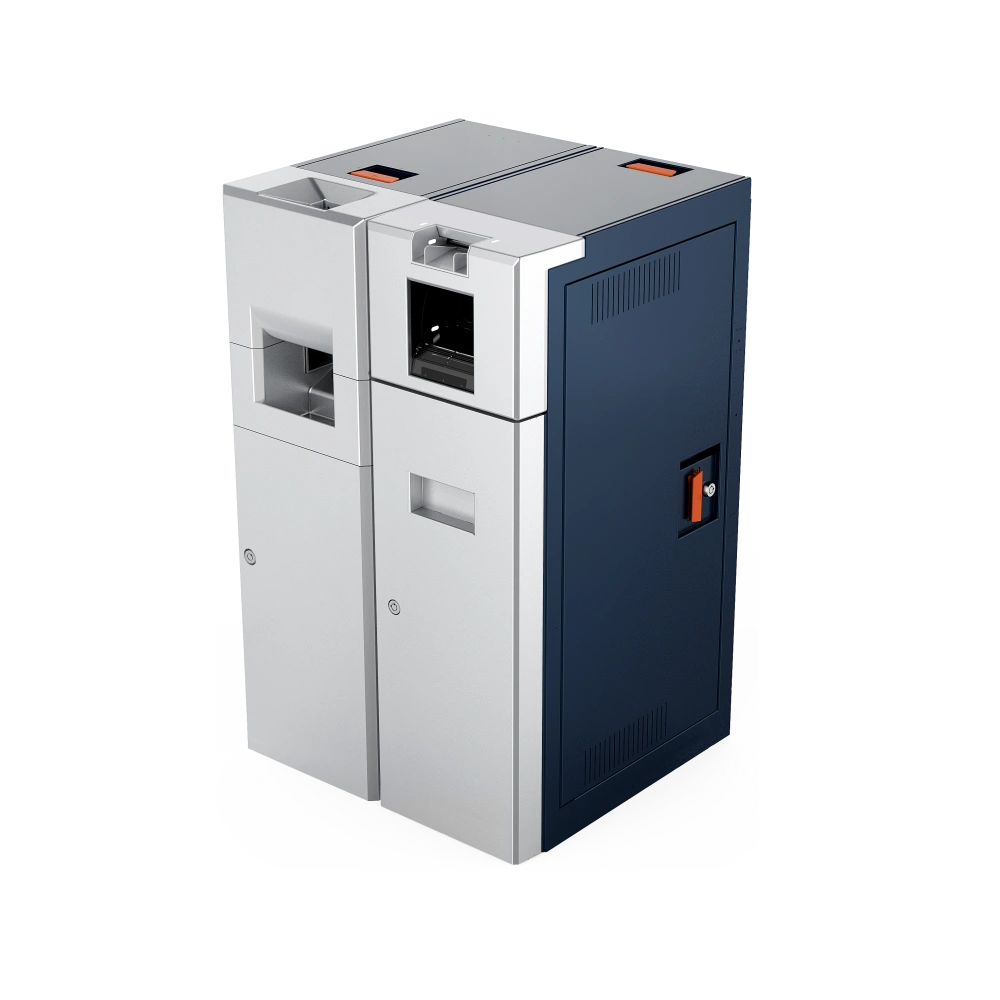

紧凑型现金循环系统 CCS-30

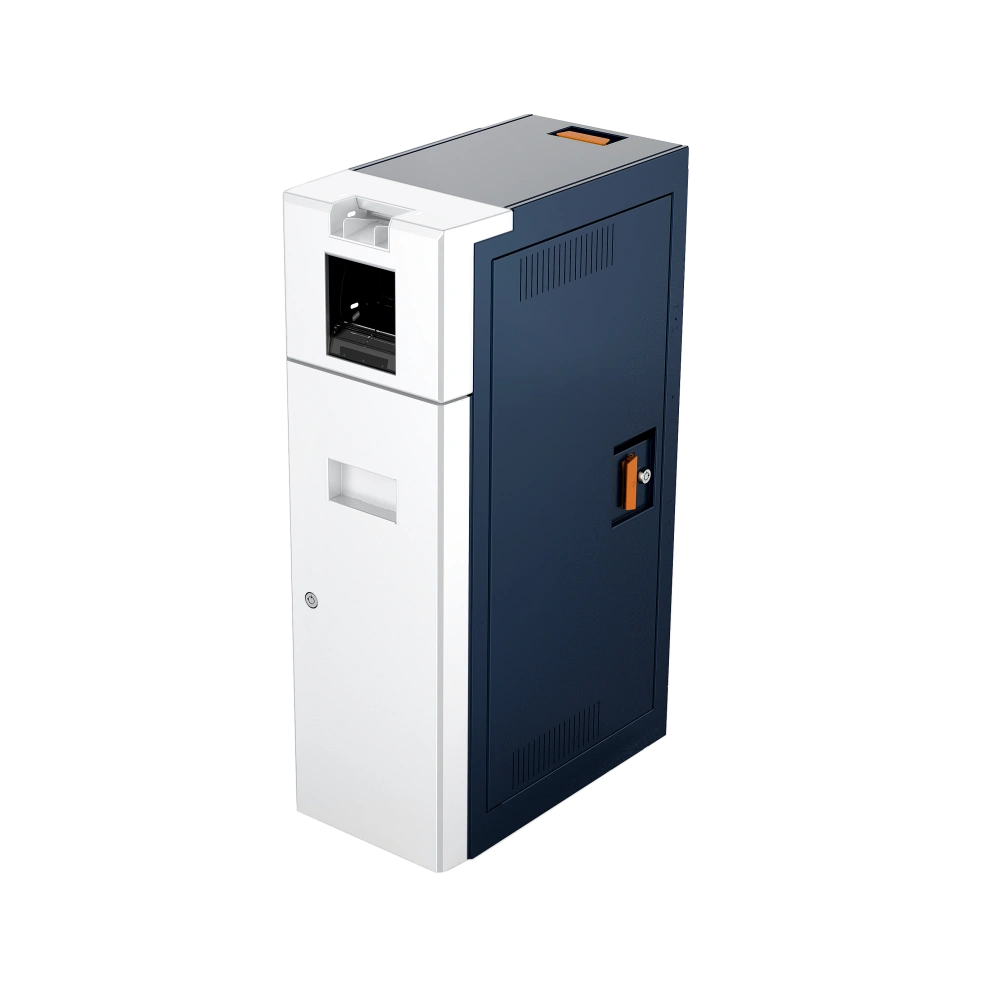

–纸币循环系统 CCS-30-B
–硬币循环系统 CCS-30-C
主要应用场合：零售系统自动收费找零设备、公共交通自动售票机及需要现金循环找零功能的自动设备等。
Share:
纸币：
- 基于经验丰富的纸币识别和鉴伪技术，多光谱全幅面图象扫描(CIS 技术)及全幅面磁信
- 号检测，高安全纸币识别；
- 纸币接收纠正装置确保纸币运行顺畅；
- 高速纸币处理速度，接收速度 3 张/秒，找零速度 3 张/秒；
- 支持 30 张整叠入钞，30 张整叠找零；
- 大循环容量，最多支持 4 种不同面值，每个面值循环容量 100 张，可灵活配置找零面额；
- 纸币智能清分，对不适合参与循环找零的纸币直接存入钱箱，降低卡钞率；
硬币：
- 基于经验丰富的硬币识别和鉴伪技术，采用多频率、多组线圈综合检测手段，对硬币材
- 质、直径、厚度等，多维度进行硬币识别、鉴伪；
- 高速硬币处理速度，接收速度 5 枚/秒，出币速度 5 枚/秒；
- 支持 50 枚一次性投入，以及 50 枚的出币数量；
- 大循环容量，最多支持 8 种不同面额的硬币循环，单个面额的循环容量高达 400 枚（以人民币 5 角规格计）；
- 具有异物排出功能，每次交易后自动进行异物排出；
- 具有遗忘回收，顾客遗忘取走的硬币自动进行回收，避免现金丢失；
- 自动清币功能，循环 HOPPER 满后自动清币进入回收箱；
|
Item |
Performance Specifications |
|
|
Cash in |
Cash input capacity |
30 sheets |
|
Cash input method |
Whole stack, vertical banknote feeding, no restriction on direction |
|
|
Identify |
Currency |
Support 100 different denominations of banknotes (one or more countries) at the same time |
|
Material |
Paper, plastic-based (polymer) |
|
|
Real banknote acceptance rate |
≥99% |
|
|
Counterfeit currency recognition rate |
≥99.9% |
|
|
Banknote size |
Length range: 120~180 mm; Width range: 60~85 mm |
|
|
Detection Methods |
Optical |
Full-frame image sensor (CIS technology), no less than 100,000 measurement points per banknote |
|
Magnetic |
Full-width magnetic sensor detection |
|
|
Speed |
Receiving speed |
3 sheets/second |
|
Change speed |
3 sheets/second |
|
|
capacity |
Temporary Storage |
100 sheets (using one of the recycling boxes) |
|
Number of circulation boxes |
4 pcs |
|
|
Circulation box capacity |
The capacity of a single circulation box is 100 sheets (4 circulation boxes have a total of 400 sheets) |
|
|
Deposit box capacity |
700 sheets |
|
|
Cash replenishment box capacity (optional) |
500 sheets |
|
|
Cash out |
Cash outlet capacity |
30 sheets |
|
Cash withdrawal method |
Whole stack |
|
|
Cash outlet protection |
With cash outlet baffle |
|
|
Upgrade |
Upgrade method |
With online download and upgrade function |
Coin performance parameters
|
Item |
Performance Specifications |
|
|
Coin-operated |
Coin-operated mode |
Multiple pieces at one time |
|
Coin slot capacity |
50 pieces (any denomination) |
|
|
Identify |
Currency |
Supports 250 coins of different denominations (one or more countries) at the same time |
|
Material |
Metal material |
|
|
Real currency acceptance rate |
≥99% |
|
|
Detection Methods |
Electromagnetic testing |
Multi-coil and multi-frequency detection of the coin surface and core material, as well as the coin size, etc. |
|
Speed |
Receiving speed |
5 pieces/second |
|
Change speed |
5 pieces/second |
|
|
Number of cyclic hoppers |
8 pieces |
|
|
Cycle Hopper Capacity |
The capacity of a single HOPPER is 400 pieces (calculated at RMB 50 cents) |
|
|
Coin Box |
3000 pieces (calculated based on RMB 50 cents) |
|
|
Foreign body removal |
Coin slot |
Supports foreign body removal |
|
Cash out |
Coin outlet capacity |
50 pieces |
|
Forgotten Recycling |
With coin outlet recovery function |
|
|
Upgrade |
Upgrade method |
With online download and upgrade function |
Environment
|
Environment
|
Operating temperature |
0℃～50℃ |
|
Storage temperature |
-20℃～60℃ |
|
|
Humidity |
20%RH～90%RH (Non-condensing） |
Electrical technical parameters
|
Item |
Specifications |
|
|
Electrical Interface |
Power supply |
AC110V-240V |
|
Rated frequency |
50-60Hz |
|
|
Communication interface |
Communication Protocol |
RS232 |
|
Baud rate |
19200 bps |
|
|
Inspection method |
No verification |
|
|
Communication parameters |
Data bit: 8 bits Start bit: 1 bit Stop bit: 1 bit |
|
|
Electromagnetic compatibility |
Comply with relevant national standards GB/T 17626 |
|

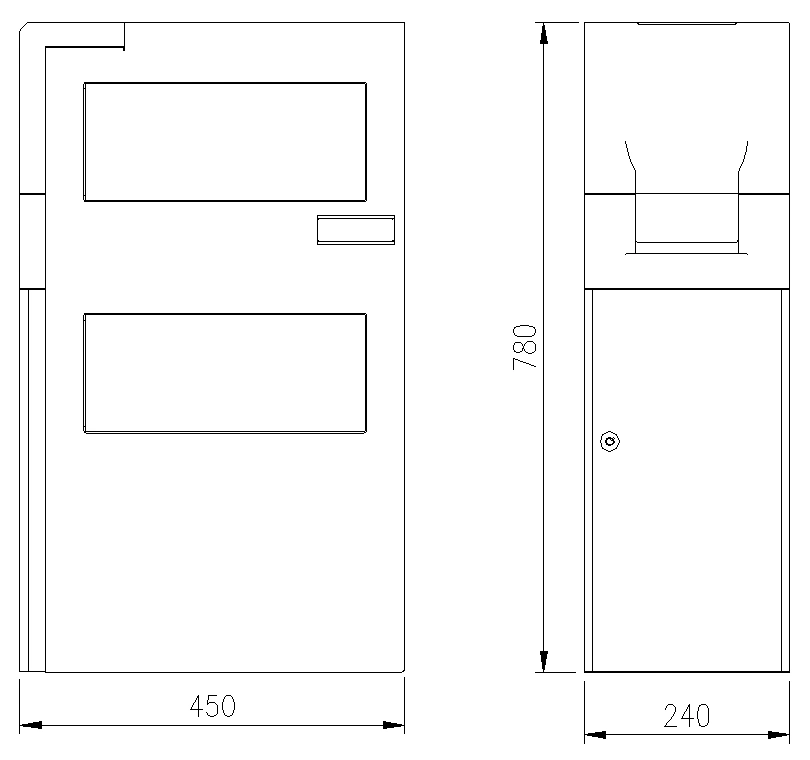

CCS-30 紧凑型现金循环系统外形尺寸：宽 480×深 450×高 780（单位：mm）

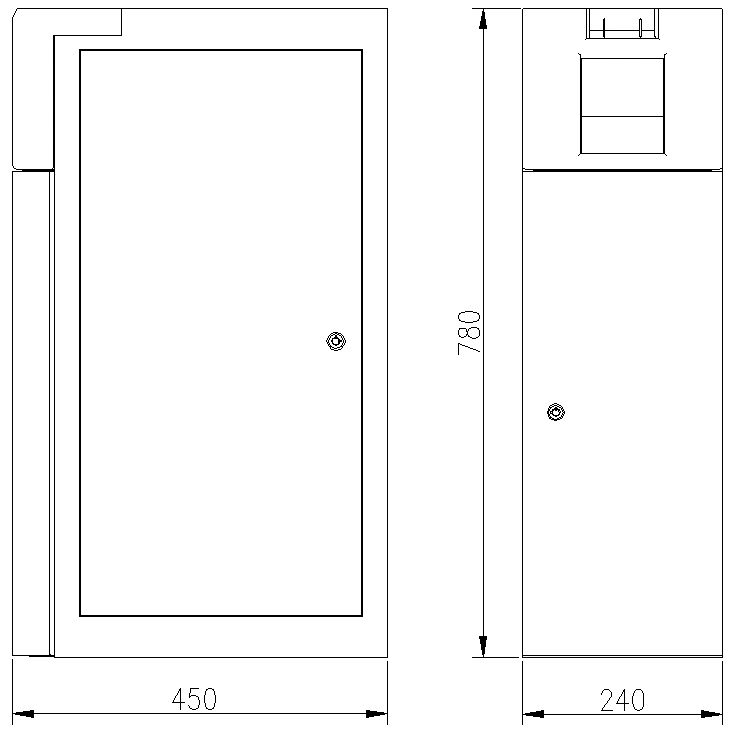

CCS-30-B banknote circulation system dimensions: width 240 × depth 450 × height 780 (unit: mm)
CCS-30-B 纸币循环系统外形尺寸：宽 240×深 450×高 780（单位：mm）
