CAS-008A / Coin Recycling Module

The CAS-008A coin recycling module is a key component for AFC systems, featuring a coin receiver gate, recognizer, dispenser, and circular card box. It can be optionally equipped with a coin reserve change box and recycling box. The module accurately accepts and recognizes coins, supporting functions like coin return, dispensing, clearing, and self-diagnosis of faults. It is designed for high reliability, ease of use, and low maintenance.

This field is required.
This field is required.

• Identifies first and second edition Malaysian coins
• High-Speed Change: 3-5 coins per second
• Coin Return Function
• Offline Self-Diagnosis: easy debugging
• Easy On-Site Maintenance: Quick replacement of common wear parts
• Compact Design: Minimizes internal space usage

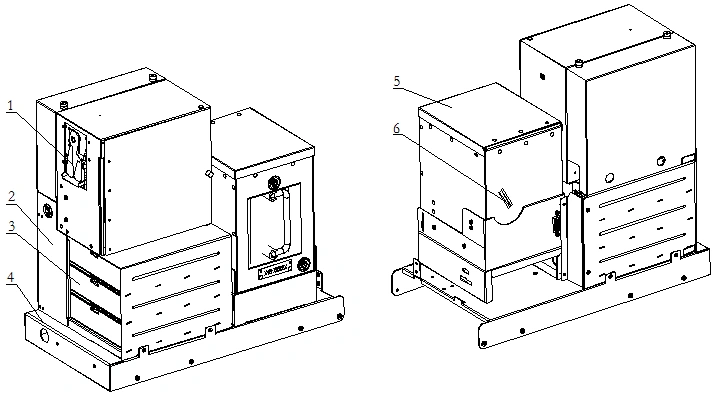

Overall appearance

1.Coin gate component  2. Recycling box cover plate  3. Recycling box  4.Module base 5.Coin changing preparing box  6. Coin exit

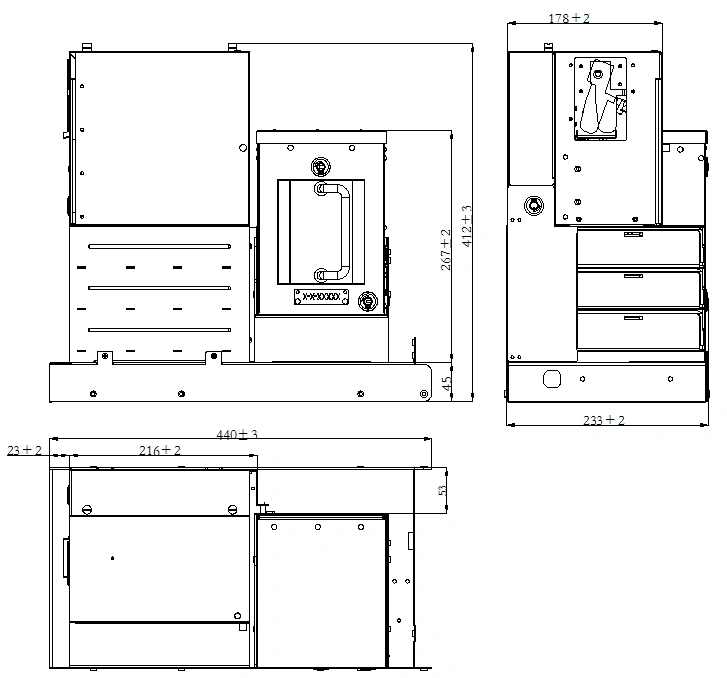

Dimension

CAS-008 adopts three independent circular boxes and three reserve change boxes corresponding to different coin values. After the coin is dropped and received, it flows to each corresponding circular box according to the needs of the upper layer, or it is received into the coin receiving box.

The coins in the changing preparing box are manually added by the operation personnel. The coins in the recycling box come from the coins received by the recognizer, ensuring that the received coins do not mix with the added coins.

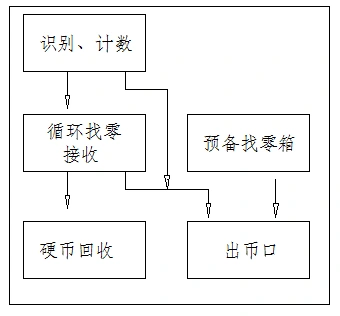

Module Workflow Diagram
